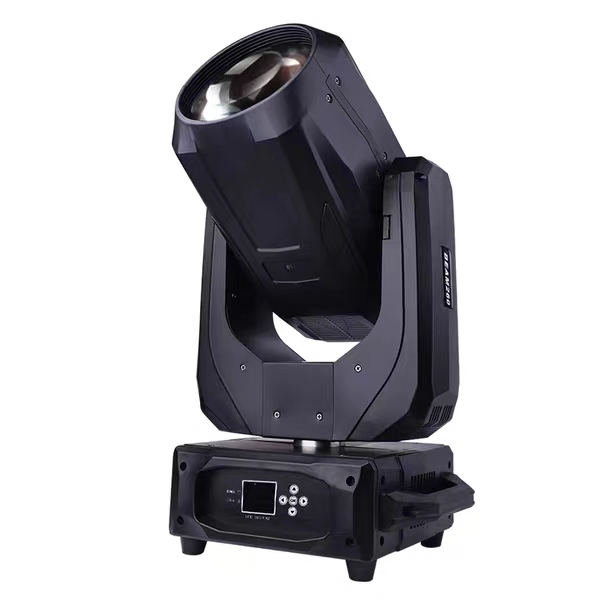

260W光束灯;型号:HS05
产品描述
详细描述

技术参数:                                                                                                   电   压: 100V-240V/50-60Hz,
镇流器: 电子镇流器
灯泡: YODN R9 260W
色温:7000K
平均寿命:1500H
通道数量: 16、18 DMX
控制方式: 23个国际标准DMX512控制,主从模式,自走模式。
LCD 液晶显示,DMX 3芯或5芯信号输入
透镜:加米基防反射镀膜玻璃透镜
颜    色: 带有14种颜色+空白 带有全色或半色功能,同时拥有UV 隔热片, CMY混色系统
固定图案: 带有14个固定图案片+空白
旋转图案:带有12个旋转图案加空白,图案片能自由插拔更换
频    闪:0-13次/秒。带随机频闪
棱镜及棱镜旋转: 旋转2个棱镜(8+24棱镜组合,8+16棱镜组合,16+24棱镜组合)可以双向旋转。棱镜旋转,带有棱镜宏功能效果。
柔光效果:可调节柔光的光斑角度
光      圈: 5% 到 100%,带有光圈效果
调      焦: 线性电子调焦
调      光: 0-100%线性调节
投射光范围: X向540度,Y向270度,可自动校正定位
光束角度:  5°到27 °
频    闪: 双片式频闪(0.5-9次/秒)
马达数量: 共16个超静音马达,二个三相马达,16Bit驱动
其它功能: 远程控制灯泡开关功能,显示灯具、灯泡使用时间,
外    观: 耐高温塑料+模压合金材料
防护等级: IP20
净    重: 23 kgs

Technical parameters: voltage: 100V-240V/ 50-60hz,
Ballast: electronic ballast.
Light bulb: YODN R9 260W.
Color temperature: 7000 k
Average life: 1500H.
Channel number: 16, 18 DMX.
Control mode: 23 international standard DMX512 control, master-slave mode, self-walking mode.
LCD liquid crystal display,DMX 3 core or 5 core signal input.
Lens: a glass lens with an anti-reflective coating.
Color: with 14 colors + white space with full or semi-color function, with UV insulation, CMY color mixing system.
Fixed pattern: with 14 fixed pattern pieces + blank.
Rotating pattern: with 12 rotating patterns and blank, the pattern can be freely inserted and replaced.
Frequency flash: 0-13 times per second. Band random flashing
Prism and prism rotation: rotating 2 prisms (8+24 prisms,8+16 prisms,16+24 prisms) can rotate in both directions. Prism rotation, with prism macro function effect.
Soft light effect: can adjust the light spot Angle of soft light.
Aperture: 5% to 100%, with aperture effect.
Focus: linear electronic focus.
Dimming: 0-100% linear adjustment.
Projection light range: X to 540 degrees,Y to 270 degrees, automatic correction of location.
Beam Angle: 5 ° to 27 °
Stroboflash: dual-chip strobe (0.5-9 times/SEC)
Number of motors: 16 ultra-quiet motors, two three-phase motors, 16Bit drivers.
Other functions: remote control lamp switch function, display lamp, lamp use time,
Outlook: high temperature resistant plastic + moulded alloy material.
Protection grade: IP20.
Net weight: 23kgs
